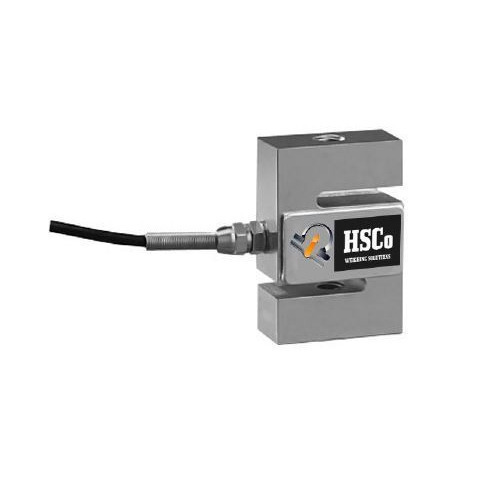

S Type Load Cell

S Type Load Cell
S Type Load Cell
Product Code : S Type Load Cell
Product Description

S Type Load Cell:

These Load Cells are stain gage based load cells designed for both tension and compression loading, they are made from high tool steel alloy with Electroless nickle platting for protecting load cells from jerk loads & corrosion. These load cells are IP67 protected. They are used for electronic scale modified from mechanical scale, Hopper scales, force measuring systems, industrial weighing and control system.

Features:

  • High Tool Steel Construction makes it very rugged for shock loads
  • Suitable for harsh application
  • Hermetically sealed having IP67 protection
  • Available from 20 kg. to 30000 kg. capacities
  • Designed for both tension and compression loading



Product Details:


  • Standard Capacities (Kg.) 20, 50, 100, 200, 300, 500, 750, 1000, 1500, 2000, 3000, 5000, 10000, 30000

Nominal Output

2.0mV / V

Excitation Voltage

10 VDC - Maximum 15 VDC

Safe Load

150% of Rated Capacity

Ultimate Load

200% of Rated Capacity

Non Linearity

<±0.025% of FSO (Full Scale Output)

Creep (30 minutes)

<±0.025% of FSO

Zero Balance

<±1% of FSO

Input Resistance

396 ± 10 ohms

Output Resistance

350 ± 5 ohms

Temperature Range

0oC to +60oC

Material

Electroless Nickel Plated Tool Steel

Insulation Resistance

Above 5000 Mega ohms

Environmental Protection Class

IP67
